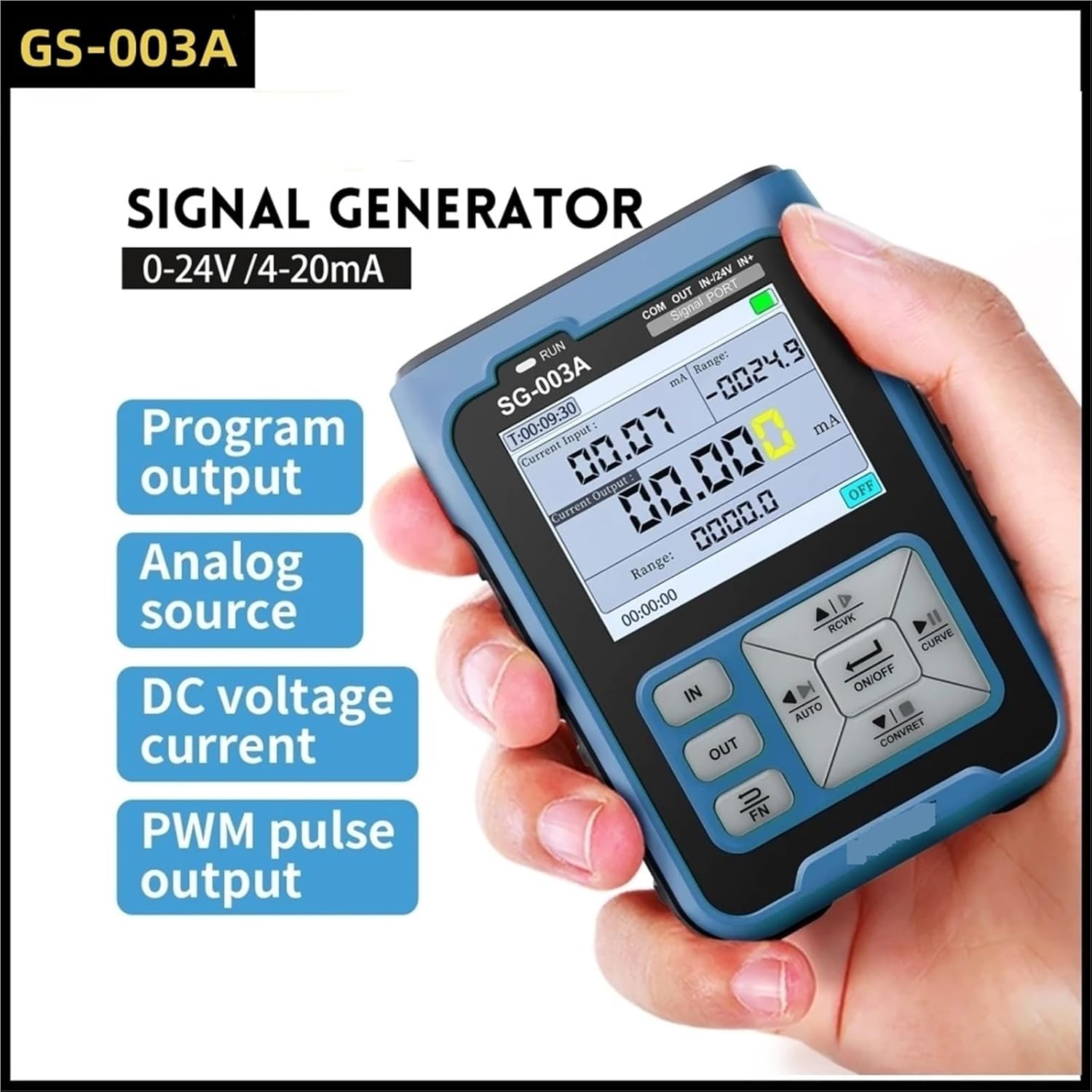

SG-003A 0-10V Adjustable Current Voltage Simulator 4-20mA Signal Generator Sources Transmitter Calibrator Transmitte

Digital Signal ProcessorsDescription :SG-003A signal generator is mainly used for debugging of industrial field , process instrumentation, electric valve and so forth. Friendly operation interface is easy to use.The SG-003A signal generator is small and light but has a long standby time and high precision.Easy to carry when you go out to work.Adjustable button backlight and high-definition TFT color screen make it more convenient for users to operate at night and during the dayFeatures :1. Expect with the conventional signal input and output functions2. Voltage and current have automatic output function,it can choose a single rise,three modes of single drop and cycle.3. With input to output conversion,voltage conversion active current mode,passive mode and current conversion voltage mode.4. The output has a custom function,the upper and lower output limits can be set arbitrarily.6. Voltage input diagram,current input diagram,the frame rate is 10 frames.7. PWM output can set frequency and duty cycle respectively.8. Real-time curve:Real-time observation of changes in voltage and current9. It is powered by a large-capacity lithium battery and is charged with a Type-c interface (5V).The capacity of the lithium battery is 3000mHA,Super long working hours10. The high-definition TFT color screen makes the reading more eye-catching.The resolution is 240*320.Low power consumption,Maximum power consumption: 0.32WTechnical Parameters:1. Active current output: range: 0~24mA; resolution: 0.01 mA; maximum load: 750;Precision:±(0.1%+0.005)2. Passive current output: range: 0-24 mA; resolution: 0.01 mA; external power supply up to 30V;Precision:±(0.1%+0.005)3. Voltage output: range: 0-24 V; resolution: 0.01v; maximum current 30mA;Precision:±(0.1%+0.005)4. 24V voltage output: drive current: 24mA;resolution: 0.01 mA;Precision:±(0.1%+0.005)5. Current input measurement: range: 0-24 mA; resolution: 0.01 mA; input impedance:100;Precision:±(0.1%+0.05)6. Voltage input measurement: range: 0-30 V; resolution: 0.01 V; input impedance: 2M;Precision:±(0.1%+0.05)7. PWM output (frequency):Range: 0-9999Hz8. A sngle 3.7V 3000mAh lithium battery power supply; Standby time is 26 hours;the using time varies, based on the usage(It can be 8-10 hours with 20mA continuous output)9. Operating environment: 0 °C - 50 °C.10. Internal reverse and overcurrent protection; protection voltage:30V11. Output automatically12. Size: 92mm*72mm*30mmPackage include:1* SG-003A Multifunctional Signal Generator Calibrator4*Test Clip1*Type-C Charging Cable1*EU Charger==========Battery Included : NoHigh-concerned chemical : None Model : SG-00AModel Number : SG-003ADIY Supplies : ElectricalCertification : Display Size : 2.9 Inches & UnderDisplay size : 2.0 InchesActive current output range : 0~24mAActive current output resolution : 0.01 mAActive current output maximum load : 750Active current output Precision : ±(0.1%+0.005)Passive current output range : 0-24 mAPassive current output resolution : 0.01 mAPassive current output : external power supply Up to 30VPassive current output Precision : ±(0.1%+0.005)Voltage output range : 0-24 VVoltage output resolution : 0.01vVoltage output maximum current : 30mAVoltage output Precision : ±(0.1%+0.005)24V voltage output drive current : 24mA24V voltage output resolution : 0.01 mA24V voltage output Precision : ±(0.1%+0.005)Current input measurement range : 0-24 mACurrent input measurement resolution : 0.01 mACurrent input measurement : input impedance 100Current input measurement Precision : ±(0.1%+0.05)Voltage input measurement range : 0-30 VVoltage input measurement resolution : 0.01 VVoltage input impedance : 2MVoltage input measurement Precision : ±(0.1%+0.05)PWM output (frequency) Range : 0-9999Hz3000mAh : 3000mAhOperating environment : 0 °C - 50 °C.
